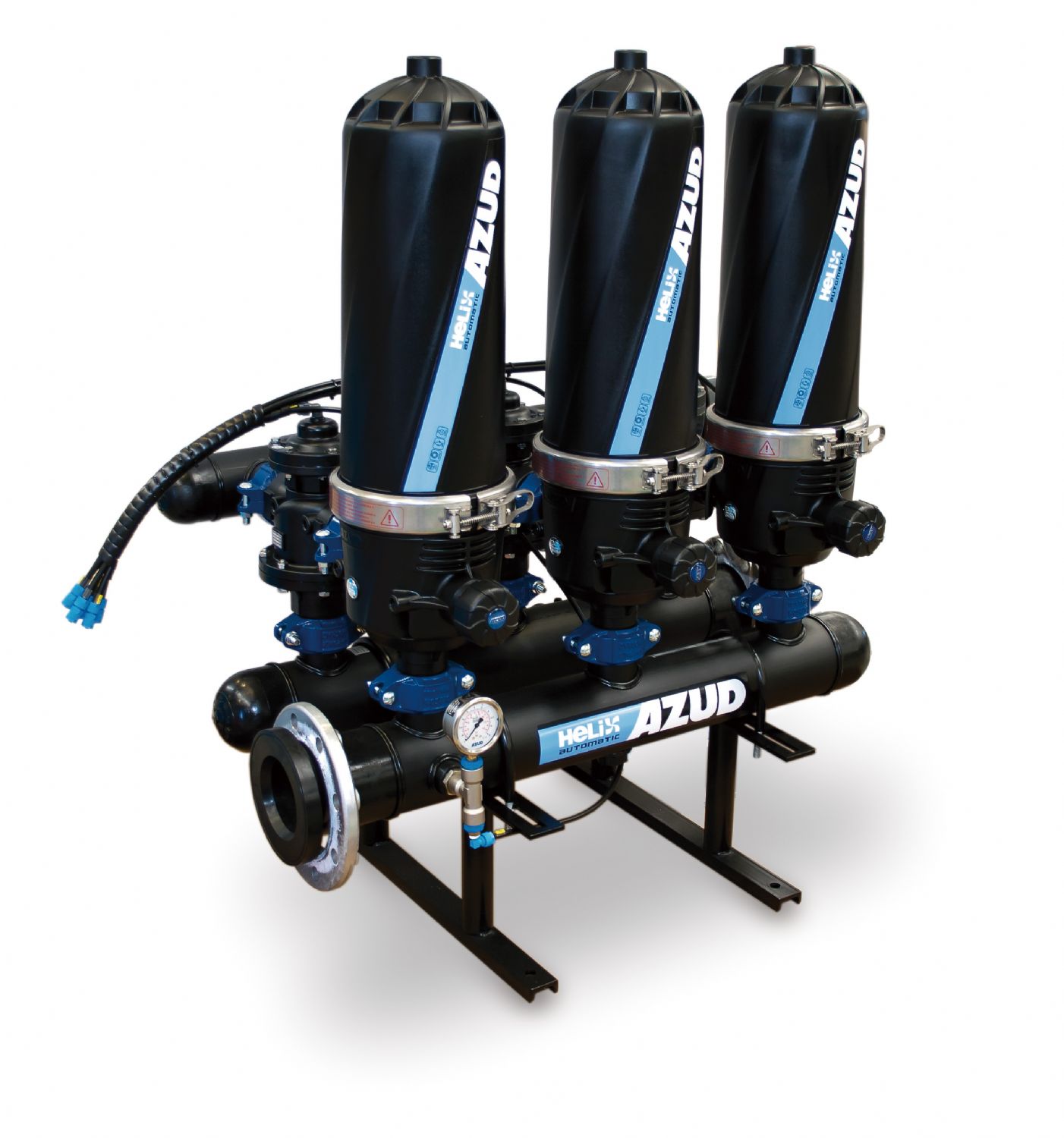

產品特色
RELIABLE FILTRATION in a wide range of
filtration degrees (5-400 micron), thanks to adouble filtration effect; Centrifugal separation+ Depth 3D filtration with multiple particleretention points.
EFFICIENT SELF-CLEANING with no
interruption of clean water supply. The exclusive DLP TECHNOLOGY minimizes thebackwash water volume and the energy consumption.
MINIMUM BACKWASH FREQUENCY thanks
to the patented anti-clogging deflector AZUD HELIX and an increased filtration area per filter element.
PLUG&PLAY AND MODULAR SOLUTION,
made of technical thermoplastics, provides robustness and resistance to corrosion.
Additional Info.
FILTRATION PHASE
During filtration, water flows from the inlet manifold to the inside of the filter, passing through the anti-clogging deflector AZUD HELIX. This device generates a centrifugal helical effect that throws the heavy particles to the internal wall of the lid andaway from the disc stack. This AZUD patent avoids a quick clogging of the filter, minimizing the backwash frequency.
The disc stack is compressed on the support frame by a pre-loaded spring. This forces the water to pass through the stack via the channels that are created between the discs.
Water flows OUT-IN through the disc stack towards the outlet manifold, while particles bigger than the filtration degree aretrapped in the discs.
SELF-CLEANING PHASE
Automatic backwash can be activated by differential pressure,by time or by an external electrical signal.
The backwash valve of each filter reverses the flow, allowingthe filtered pressurized water to flow IN-OUT through thediscs. The disc stack is decompressed and the high-speed flushing water flowing through the spray nozzles creates atangential cleaning effect, flushing out the trapped particles.
The filtration equipment is cleaned sequentially, so while one filter is being backwashed, the rest of the filters composing the filtration equipment are supplying filtered water.
規格表：
