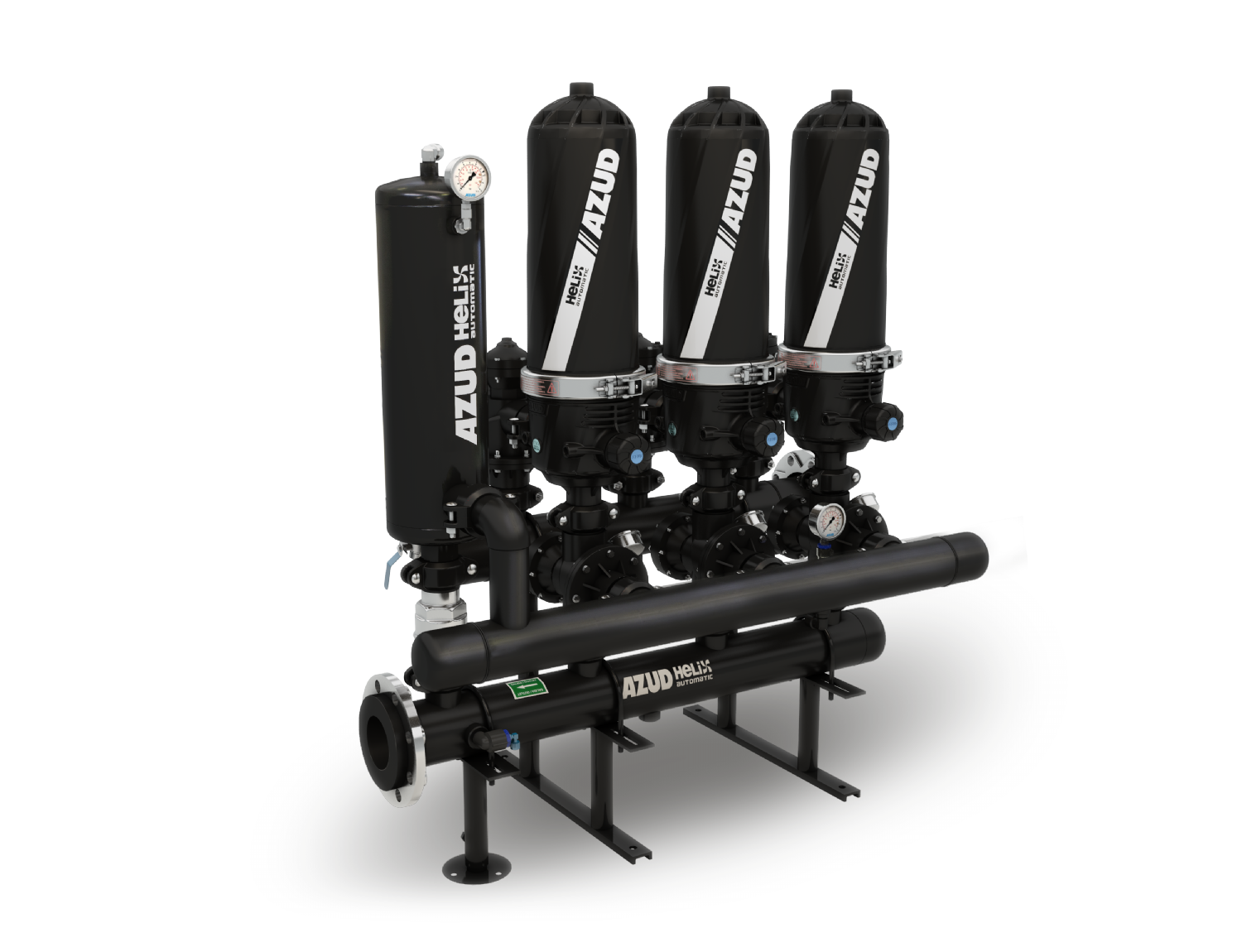

FT200 AA DLP

HELIX FT200 AA DLP

✯1-10只2”過濾本體,搭配高壓氣瓶輔助清洗
✯搭配三向閥,用自身過濾水自動進行逆洗,耗水量小
✯HELIX漩渦導流盤增大納污量
✯工程塑膠外殼與碟片提供優於金屬之耐腐性
✯最小工作壓力僅1.5 kg/cm2,有效降低能耗
✯過濾精度低至5 micron
✯高擴充性,佔地面積小

產品特色

RELIABLE FILTRATION in a wide range of
filtration degrees (5-400 micron), thanks to adouble filtration effect; Centrifugal separation+ Depth 3D filtration with multiple particleretention points.

EFFICIENT SELF-CLEANING with no
interruption of clean water supply. The exclusive DLP TECHNOLOGY minimizes thebackwash water volume and the energy consumption.

MINIMUM BACKWASH FREQUENCY thanks
to the patented anti-clogging deflector AZUD HELIX and an increased filtration area per filter element.

PLUG&PLAY AND MODULAR SOLUTION,
made of technical thermoplastics, provides robustness and resistance to corrosion.

Additional Info.

FILTRATION PHASE

During filtration, water flows from the inlet manifold to the inside of the filter, passing through the anti-clogging deflector AZUD HELIX. This device generates a centrifugal helical effect that throws the heavy particles to the internal wall of the lid and away from the disc stack. This AZUD patent avoids a quick clogging of the filter, minimizing the backwash frequency.

The disc stack is compressed on the support frame by a pre-loaded spring. This forces the water to pass through thestack via the channels that are created between the discs.
Water flows OUT-IN through the disc stack towards the outlet manifold, while particles bigger than the filtration degree aretrapped in the discs.

AIR ASSISTED BACKWASH (AA)
Exclusive AZUD system for applications with high loads of organic or filamentous suspended solids.

A water-air mix flowing at high speed backwashes each filtration element, providing a more agressive and effective cleaning.

Water saving is 80% higher than conventional equipment.



規格表:
